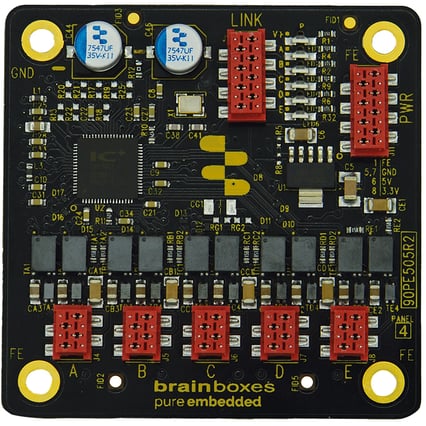

PE-505 – Pure Embedded 10/100 5 Port Ethernet Switch
- 3D CAD files and PCB footprints.

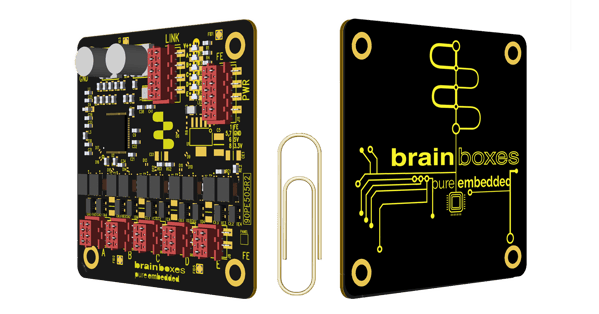

- Mega compact form – smaller than a standard business card (55x55x10mm).
- Seamless integration with design software - logical placements and fixed distances.
- Board to board and board to cable connection.
- Stability of design guaranteed for min. 10 years.
- LEDs visible in all orientations – option to route through fiber.
Functionality and Features
- 5 Port 10/100Mbps Switch (10BASE-T/100BASE-T)
- Non-Blocking Layer 2 operation
- 3.3 or 5 Vdc Input
- Reverse Voltage Protected
- Transient Voltage Protected
- 1500V Magnetic Isolation between ports
- EMC Testing information
- IEEE802.3az energy efficient ethernet
- Auto MDI/MDIX
- Extremely compact 55x55mm Board Size (2/3 the size of a business card)
- Low Power Consumption
- Power and Link indicators for all ports visible from all angles
- Board to Board and Wire to Board compatible
Product Attributes
| Weight | 0.191 kg |
|---|---|
| Dimensions | 160 × 135 × 49 mm |
